Valves

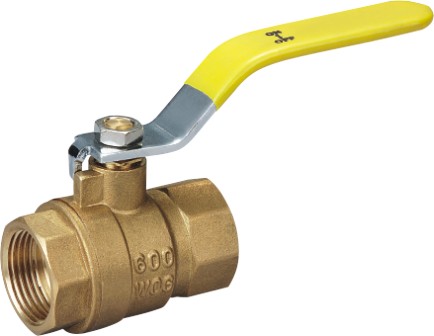

Brass Ball Valves

Full Port 150# 600 WOG Teflon Seat Chrome Plated ball 2 Piece

GENERAL APPLICATIONS

Designed for control of air, water, oil, and gas in hose or pipe lines. Rated to 600 PSI WOG; 150 PSI Working Steam Pressure.

Temperature Range

Maximum 360F

Standard Size

1/4" Through 4"

NUMBER
DESCRIPTION
07-2522
1/4"
07-2523
3/8"
07-2524
1/2"
07-2525
3/4"
07-2526
1"
07-2527
1 1/4"
07-2528
1 1/2"
07-2529
2"



Stainless Steel, UL Listed Ball Valves Available upon Request.
3" & 4" Available upon Request.

BRASS LEVER VALVES

NUMBER
DESCRIPTION

07-3532 3" BRASS LEVER DUMP VALVE
07-3533 4" BRASS LEVER DUMP VALVE
07-3534 6" BRASS LEVER DUMP VALVE



Polypropylene Ball Valves

Full Port Precision Molded Bolted Polypropylene Ball Valve

GENERAL APPLICATIONS

Designed for easy flow. This valve is an economical alternative to brass valves. The Poly Ball Valves have excellent chemical resistance. They resist most acids, chemicals, and fertilizers.

TEMPERATURE RANGE:

Maximum 180 F

STANDARD SIZE

1" Through 4"

NUMBER
DESCRIPTION
07-3529
2" FNPT X FNPT
    07-3531    3" FNPT X FNPT



NUMBER
DESCRIPTION
07-3539
2" FNPT X MALE CAM
     07-3530      2" MNPT X MALE CAM



Other Sizes and Configurations Available Upon Request.
